Woodgrain aluminium cladding
For gates, fences, walls, ceilings, soffits, awnings, and many other applications. WOODonALI aluminium cladding is a cost-effective panel solution.
- Waste-free cladding
- Easy installation
- Straight without joints
Finish Types
Matte RAL Colours
A clean, minimal aesthetic in solid matte colours.
Woodgrain Finishes
Natural timber look with a 25-year coating warranty.
Products

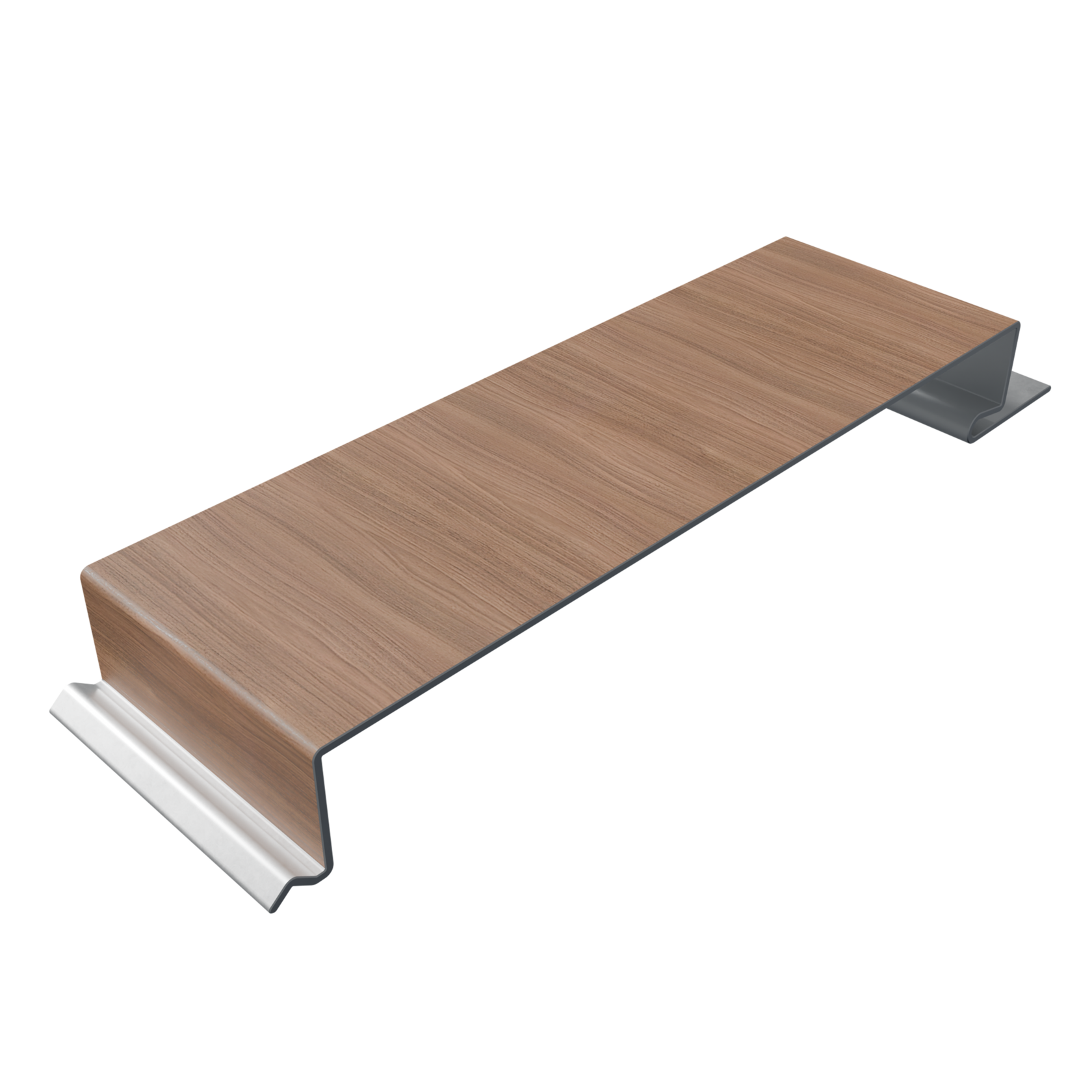

157x18x0.5mm @5100mm — Cladding-Soffits AEzcladd
Including material and woodgrain.
A$ 13 + GST / LM A$ 76.32 + GST per m² · A$ 61.80 + GST per length

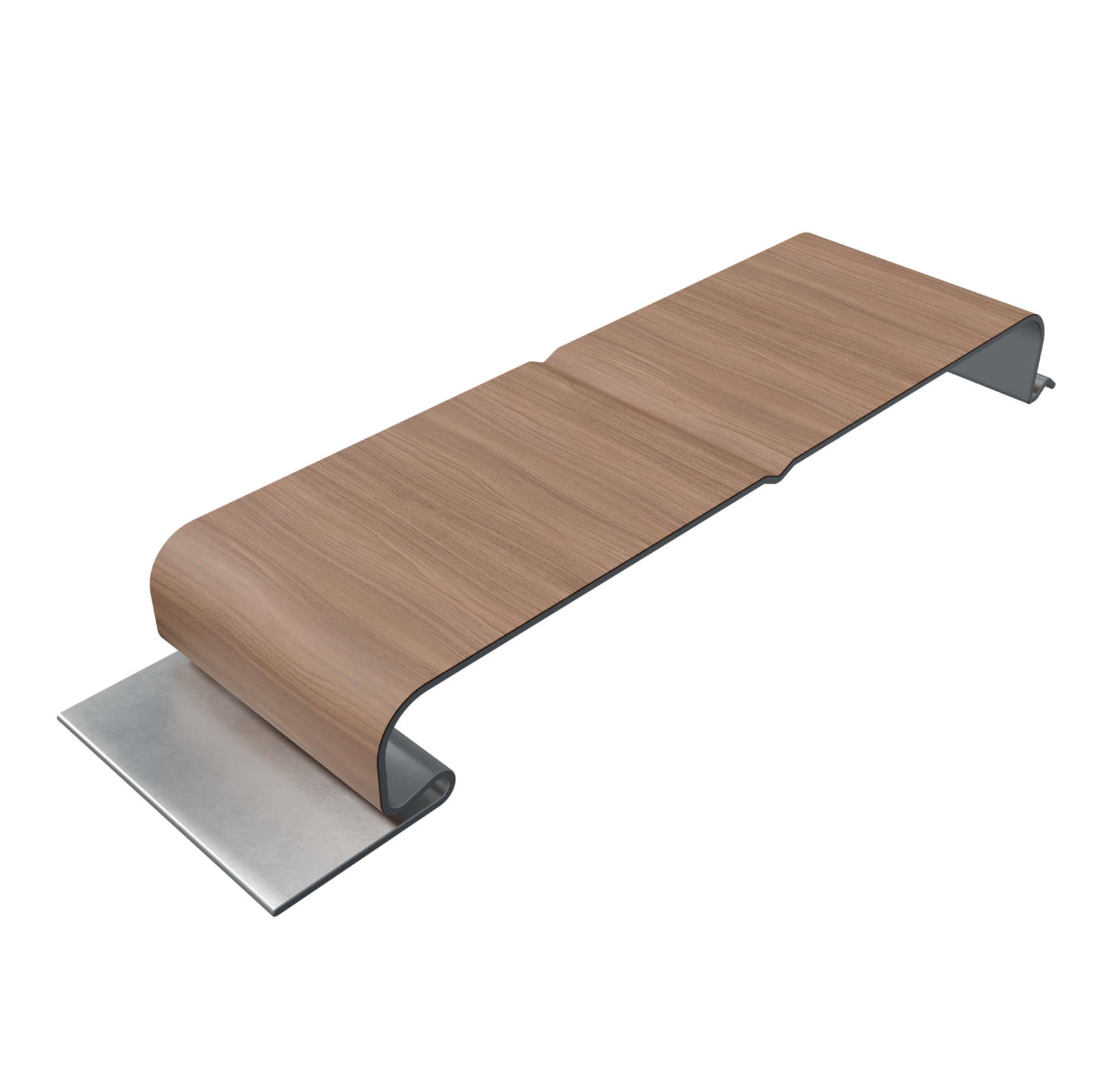

157x18x1mm @5100mm — Cladding-Soffits AEzcladd
Including material and woodgrain.
A$ 15 + GST / LM A$ 95.40 + GST per m² · A$ 77.25 + GST per length

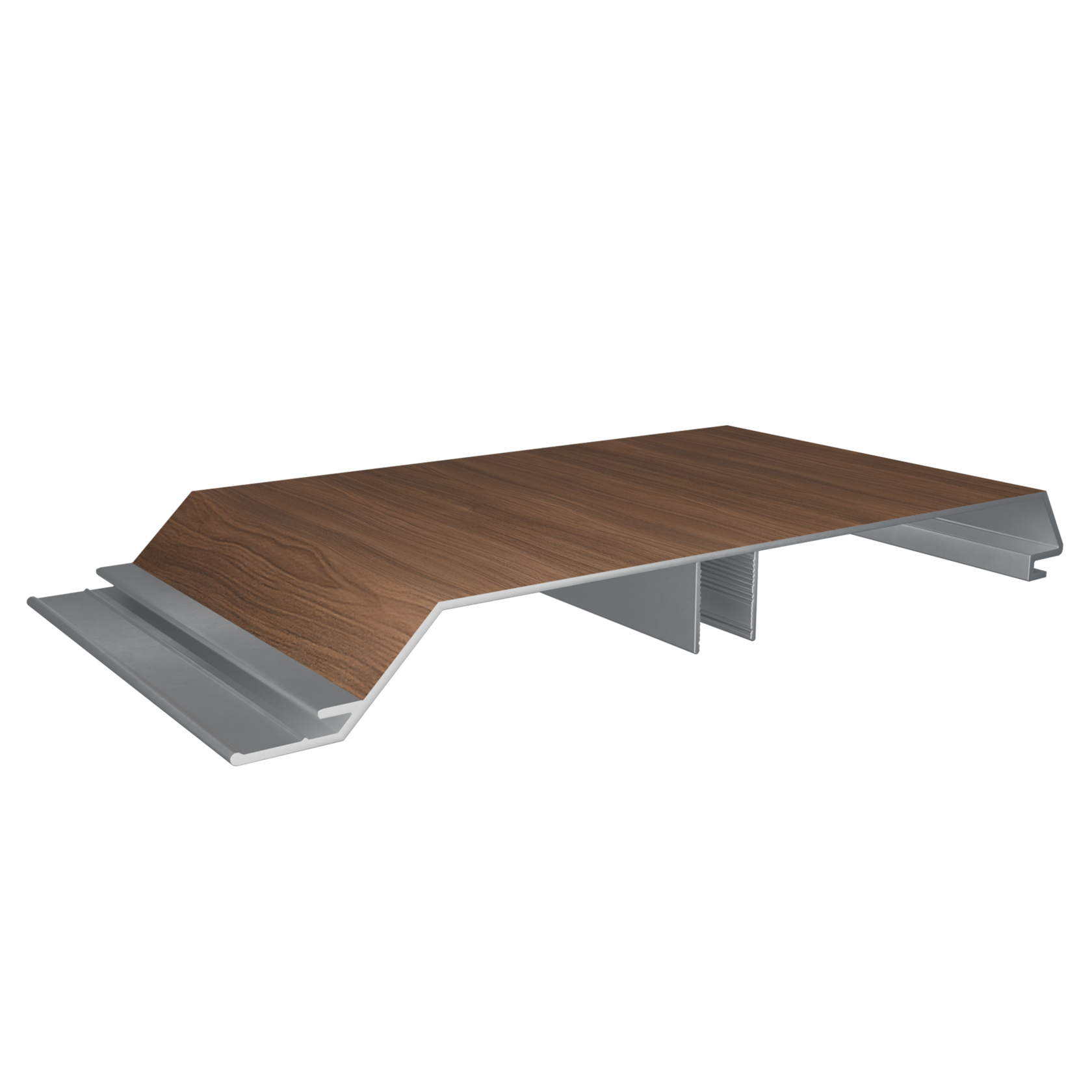

140x16x1.6mm @5800mm — AEzcladd, V-groove
Including material and woodgrain.
A$ 131 + GST per m² A$ 120 + GST per length

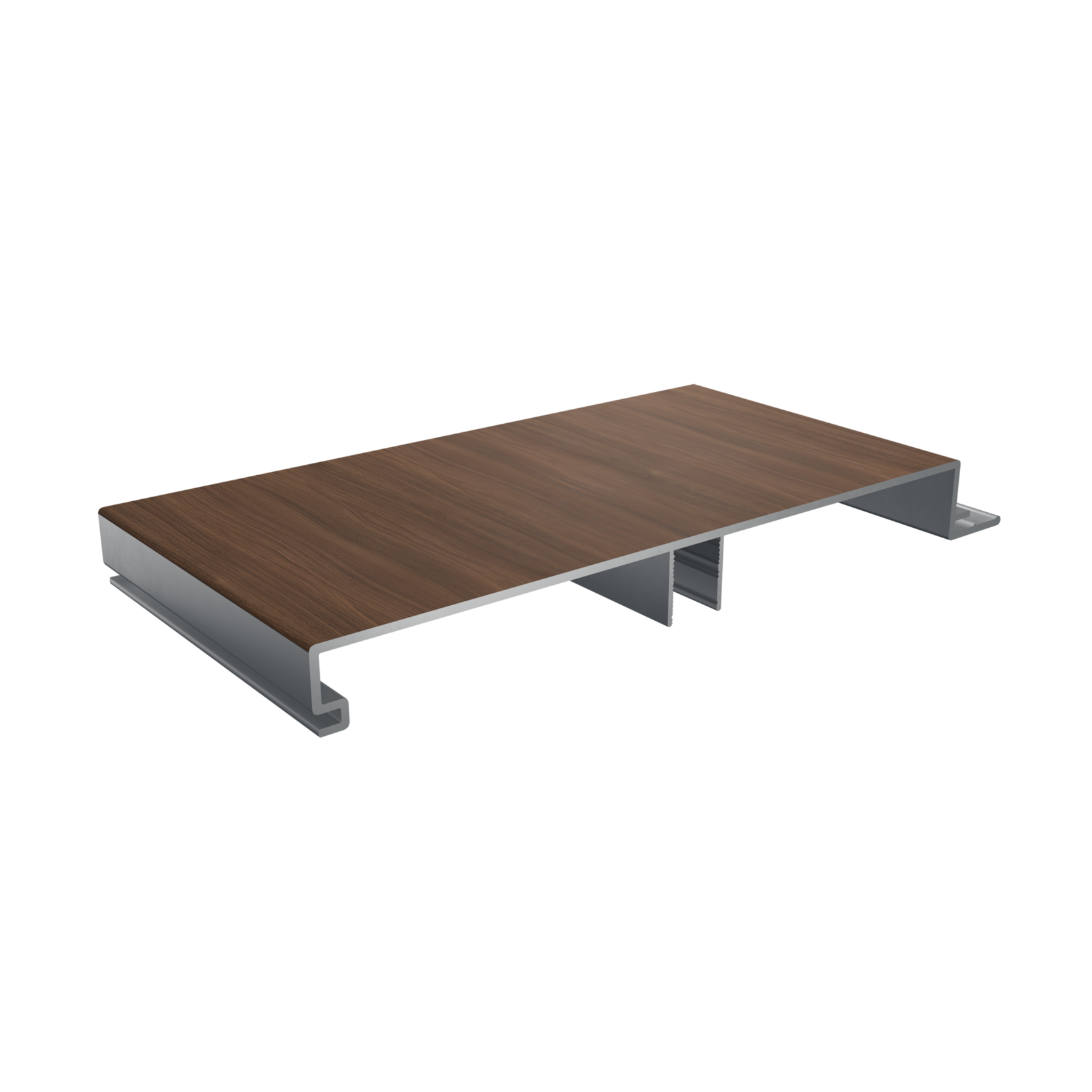

140x16x2mm @6500mm — AEzcladd, Straight look
Including material and woodgrain.
A$ 120 + GST per length

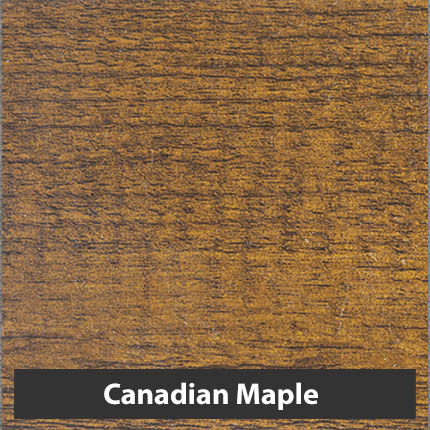

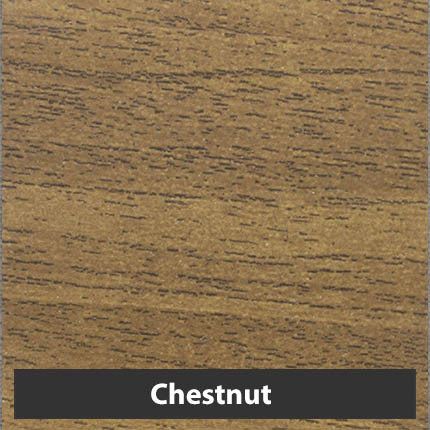

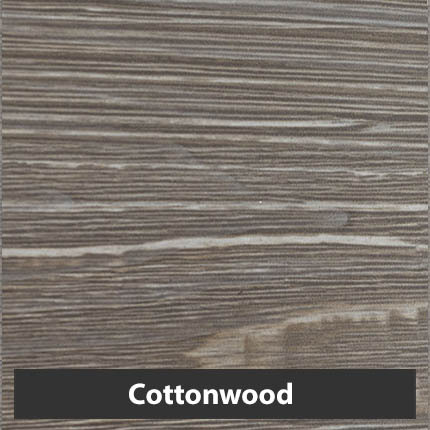

Available Aluminium Colours
A selection of the woodgrain range — click a swatch to see the texture full size.
Available Aluminium Solid Colours
A selection of the solid matte range — click a swatch to see the texture full size.

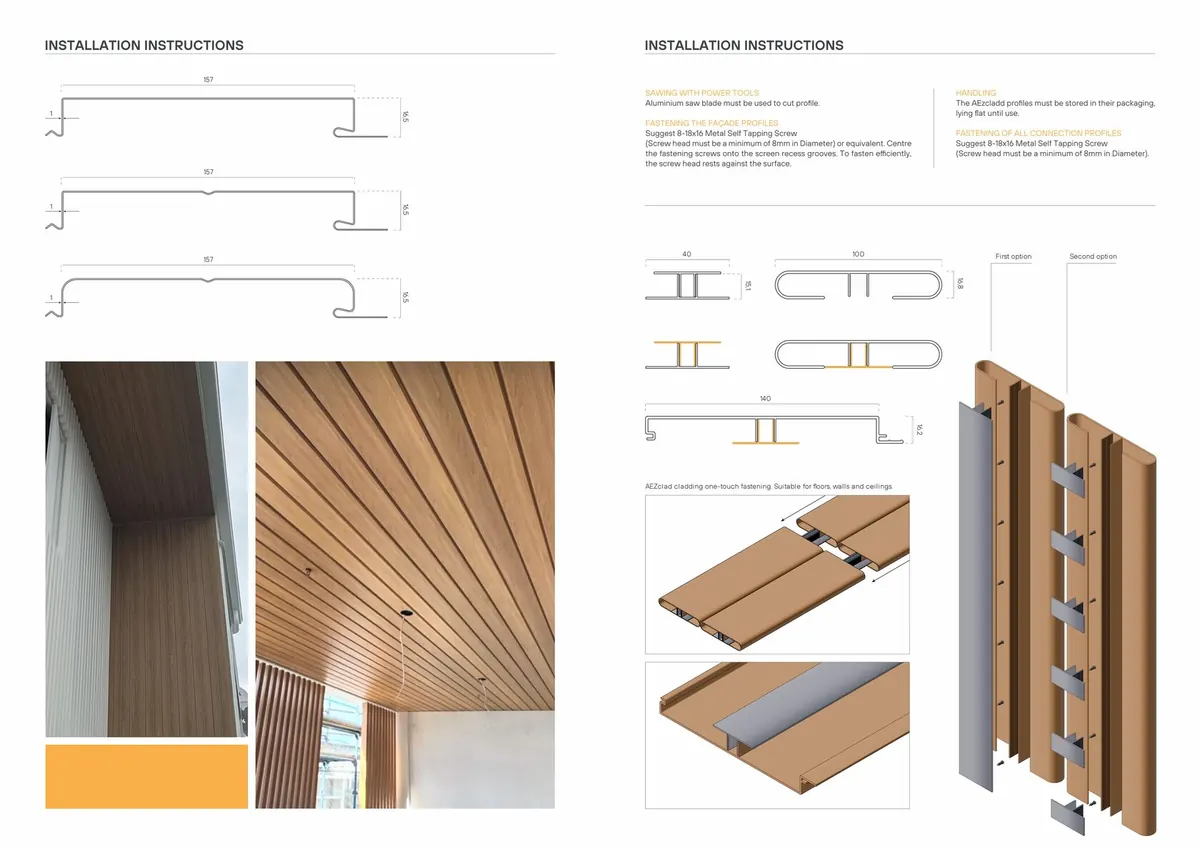

Installation
AEzcladd panels run straight and join cleanly — the J-shape channels use a no-clip slide-in system, with matching connectors and edge covers, and a waterproofing gasket where the wall calls for it. The result is a waste-free, easy-to-install panel that reads as one continuous timber face without visible joints. We supply the setting-out information whether we install or you fit it yourself.
Materials

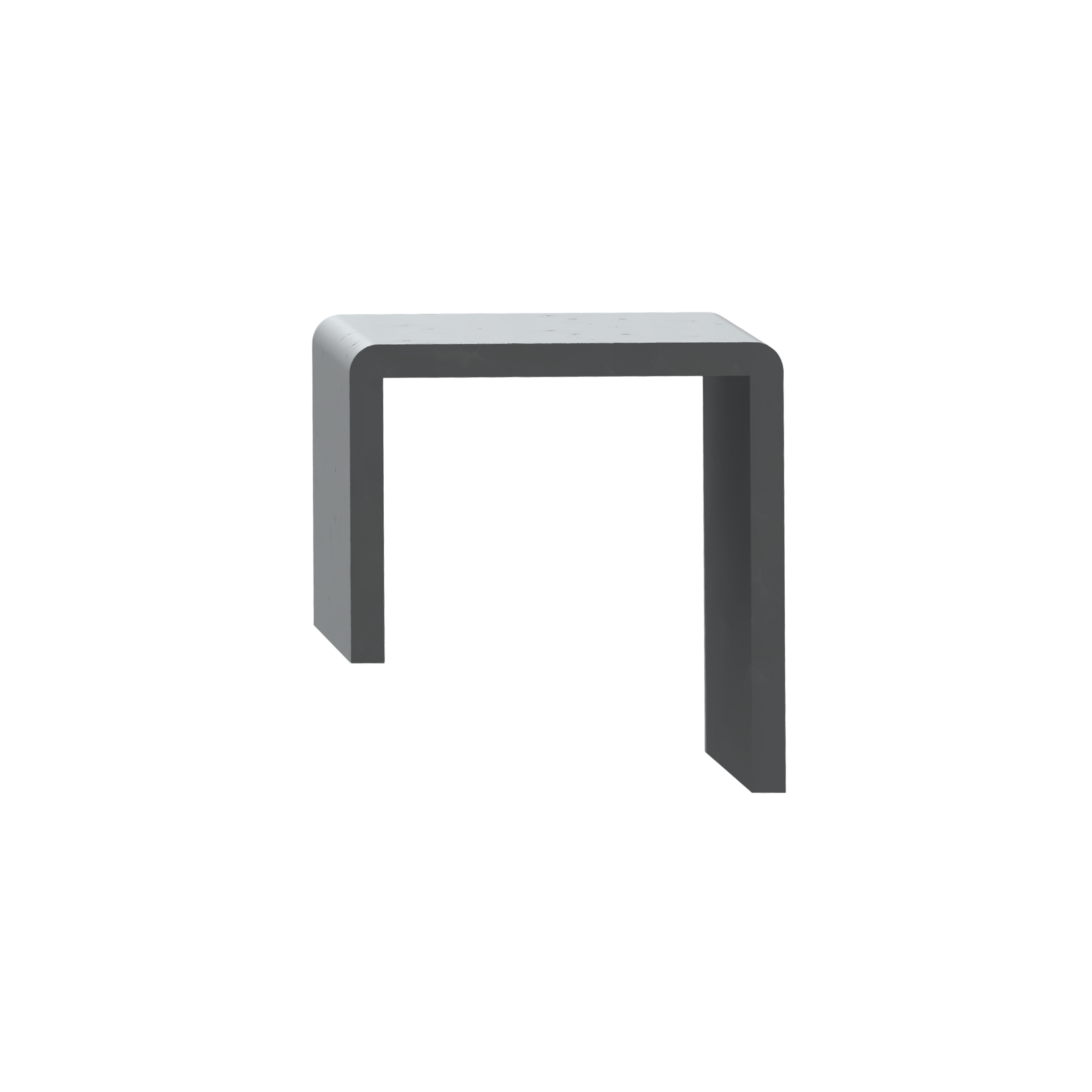

J-Shape Channels @6500
No Clip System – Slide-In.
A$ 80 + GST

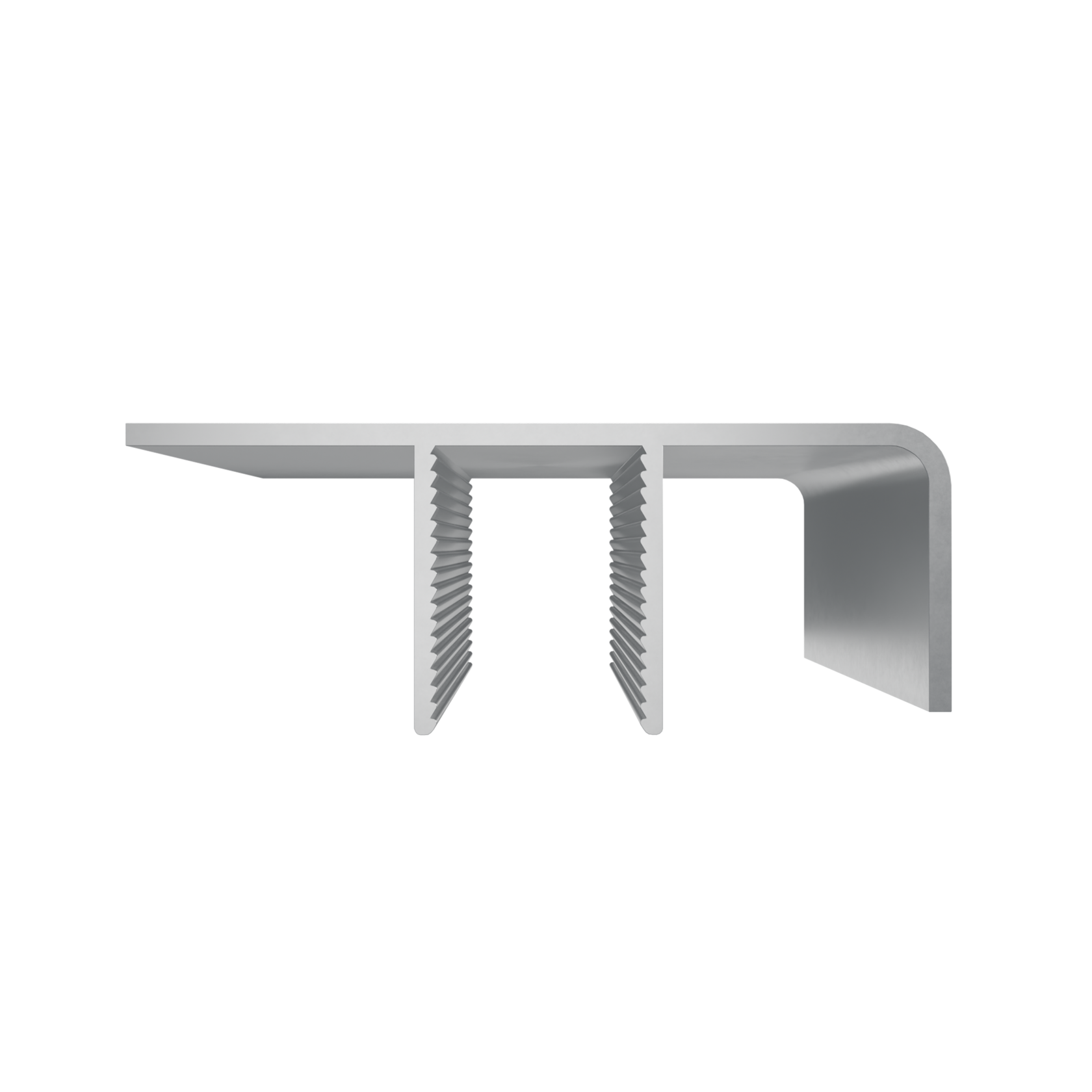

Connector @6500mm
Joins panel runs end to end.
A$ 70 + GST

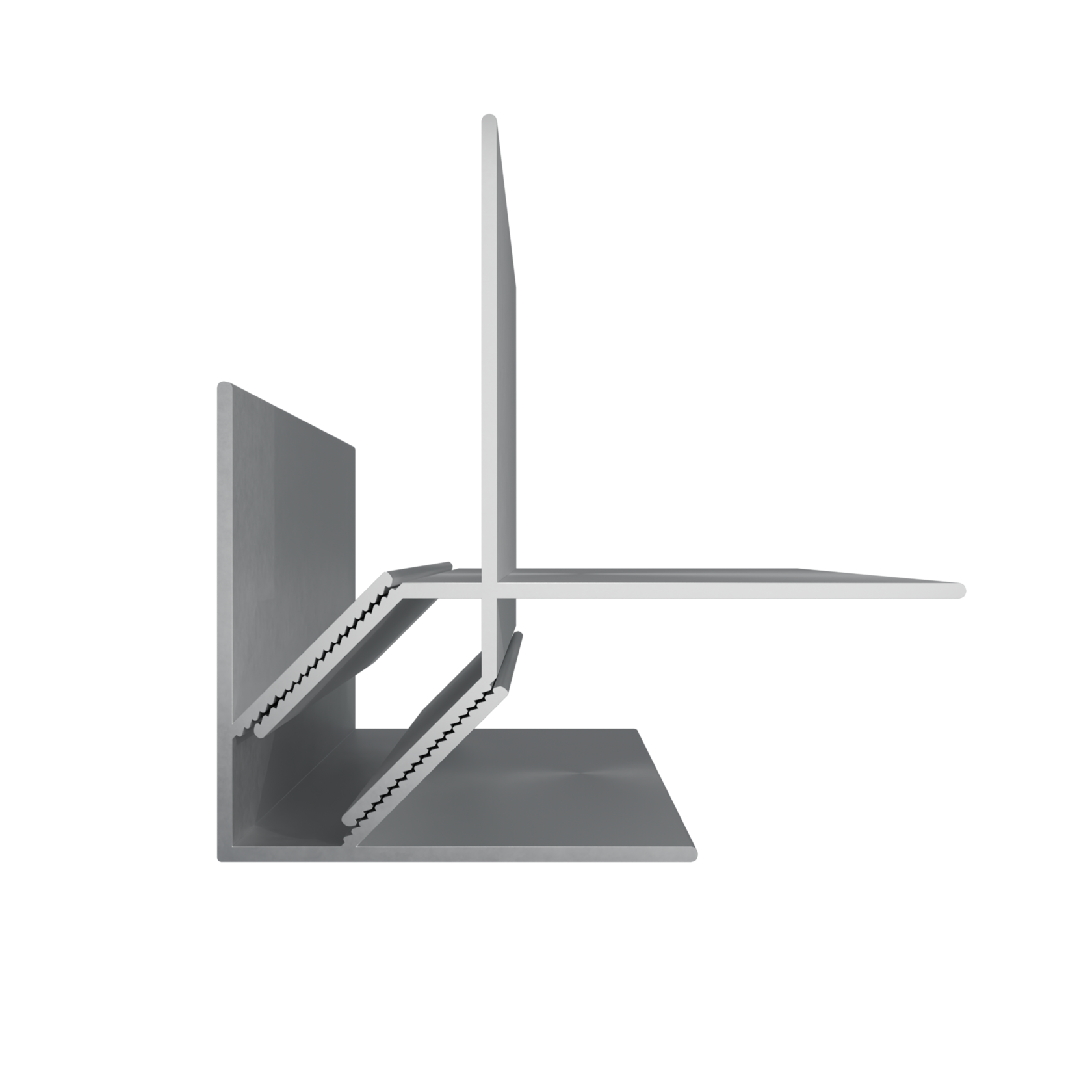

Edge Cover @6500mm
Finishes panel edges and corners.
A$ 70 + GST

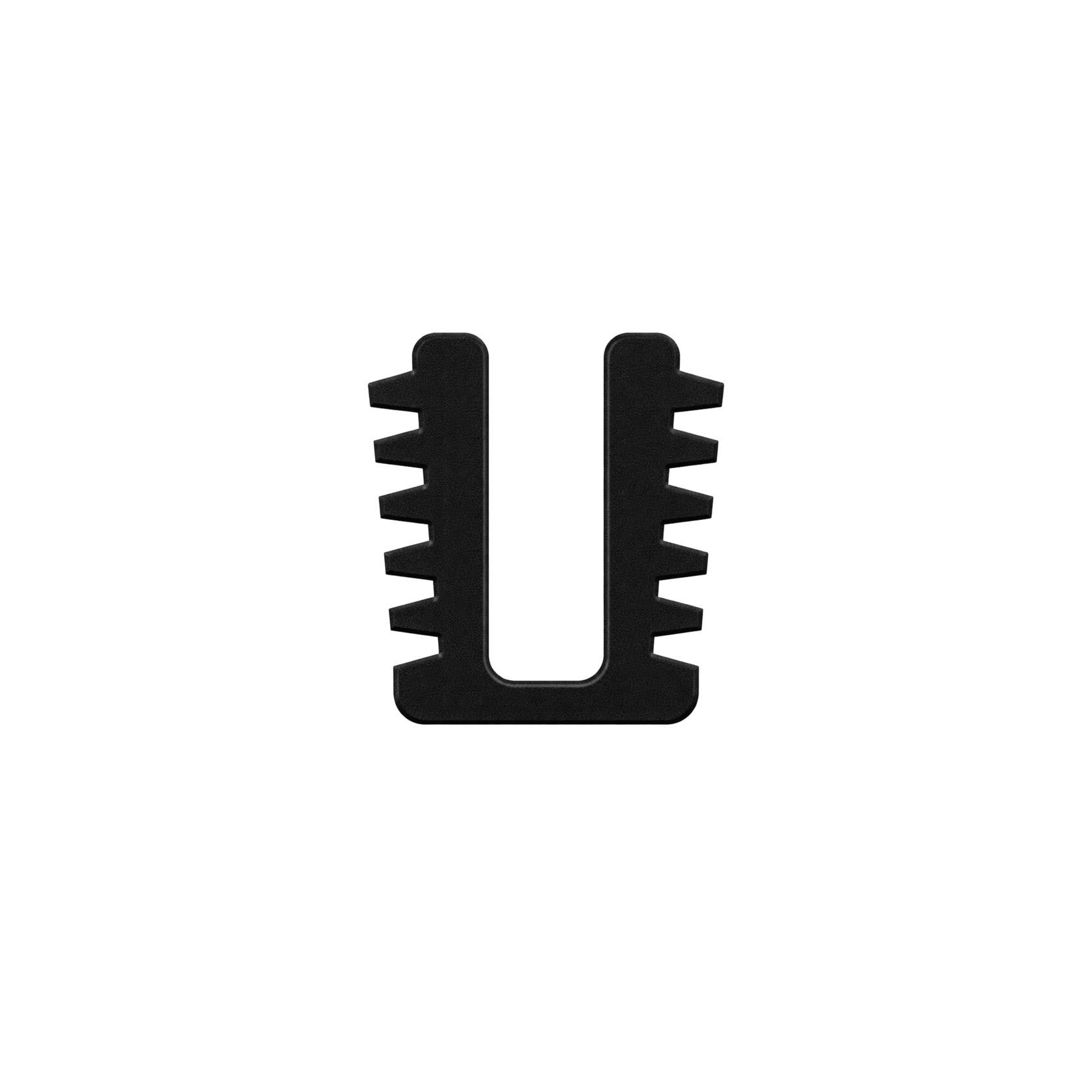

Gasket for waterproof AEzcladd
Seals joints on weather-exposed walls.
A$ 0.70 + GST per m²
Technical Specification
Click a panel below to view the full information.
Cladding profiles & dimensions
| 157 x 18 x 0.5mm @5100mm | Cladding-Soffits AEzcladd, including material and woodgrain |
|---|---|
| 157 x 18 x 1mm @5100mm | Cladding-Soffits AEzcladd, including material and woodgrain |
| 140 x 16 x 1.6mm @5800mm | AEzcladd, V-groove look |
| 140 x 16 x 2mm @6500mm | AEzcladd, Straight look |
| Coating warranty | 25 years on the woodgrain finish |
Compliance
The aluminium substrate is non-combustible. As part of WOODonALI’s commitment to compliant building products, the WOODonALI systems are designed to meet Australia’s building standards; ask us for the assessment documents your certifier needs for your project class.
We can also custom make to your specific requirements.
How to Order
Step 1 — Book Your Free Consultation
Talk to our team and get obligation-free advice for your project.
Step 2 — Schedule a Complimentary Measurement
We’ll take precise site measurements to ensure a perfect fit.
Step 3 — Receive Your Samples & Info Kit
Get colour samples and detailed product information to help you decide.
Step 4 — Choose Installation Option
Select full professional installation or a free installation demonstration for DIY projects.
Step 5 — Free Delivery
Enjoy free delivery within a 30 km radius of our Gold Coast premises.
Our works
Planning a woodgrain aluminium project?
Talk to our Australian team for obligation-free advice, samples and pricing in AUD.
